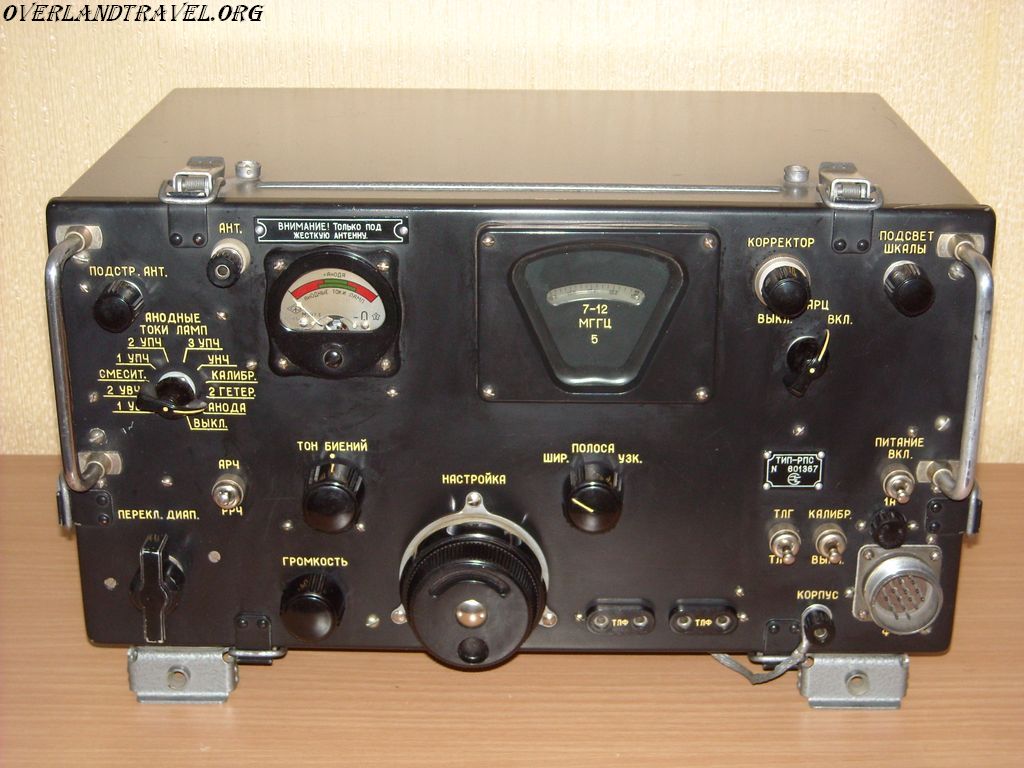

Radio RPS (radio aircraft) was produced in the USSR, and was used by transport aviation. It is also used for terrestrial communication systems.
Band of received frequency: 143-600 kHz, 2-24 MHz.
The sensitivity of the HF: AM 4mkV, SW 1.5 uV.
Bandwidth: 13.5 kHz, 11 kHz, 5 kHz, 3 kHz, 0.5 kHz.
The receiver is powered by a mains voltage of 115 VAC at a frequency of 400 Hz.
Power consumption 70 watts.
Dimensions: 508 x 327 x 303 mm.
Weight with rectifier: 26.5 kg.
Receiver is assembled on superheterodyne circuit 11 lamps.
